The Faraday Cage Effect in Powder Coating: Causes, Consequences, and Cures

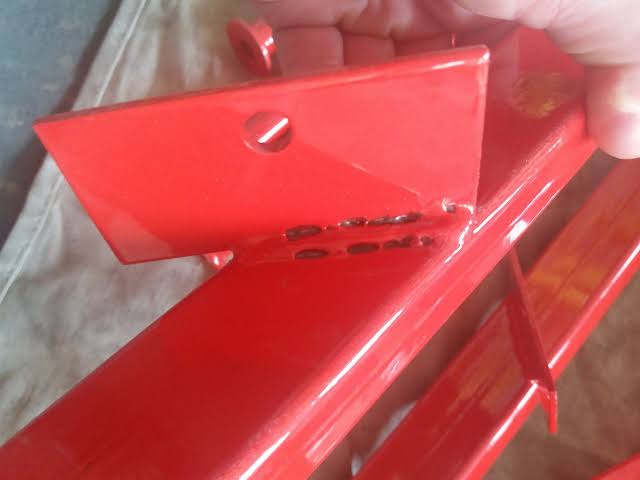

If you have spent any time in a powder coating shop, you have experienced this frustration: you pull a part out of the oven, the flat surfaces look flawless, but the inside corners and recessed areas are bare or barely covered. That is the Faraday cage effect at work. After years of consulting for shops across the U.S., it remains one of the most commonly misunderstood challenges in the business. This article breaks down what it actually is, why it happens, and—most importantly—how to fix it without buying expensive new equipment.

What Is the Faraday Cage Effect?

The term comes from Michael Faraday, the 19th-century physicist who discovered that electricity travels the path of least resistance. When you apply powder with a corona gun, you are creating an electrostatic field between the gun tip and the grounded part. That field flows according to the laws of physics, and a seemingly invisible barrier degrades those forces as they move into a part's corners or recesses.

Since the powder follows the path of charged energy lines, the particles treat recesses as no-go areas. The field lines want to take the shortest route to ground. That means they pile up on the edges and outer surfaces of a channel or corner—while the deeper recesses get almost nothing. You can spray all day, and it will not change that fundamental physics.

Why Cranking Up the Voltage Makes It Worse

Most people think they can fix a Faraday cage problem by spraying more powder or getting closer to the part. That actually makes it worse. When a channel or recess is narrow, back ionization rapidly develops on its edges, generating positive ions that reduce the charge of powder particles trying to pass through. Even if you keep spraying, the space charge of particles delivered inside by the air stream is not sufficient to create a strong enough electric force to overcome air turbulence and deposit the powder.

So here is what actually happens: the edges of your recess get over-coated—sometimes to the point of back ionization and orange peel—while the interior stays bare. With most of the electric field concentrating on the edges, powder builds up very rapidly on those outer edges. I have walked into shops where operators were cranking the kV up to 100, thinking more voltage means more penetration. It is the exact opposite for Faraday-prone parts.

Parts Most Affected

The common thread is geometry—anywhere a grounded metal surface creates a recess, pocket, or enclosed space that the electrostatic field has to penetrate deeper to reach. The deeper and narrower the recess relative to its opening, the more severe the effect.

Extruded aluminum channels and frames are frequent culprits, particularly in architectural coating applications across the Southwest and Southeast. Automotive wheels are another major challenge—the lug nut recesses and spoke interfaces consistently give coaters trouble. In fact, powder coatings can protect aluminum wheels effectively, but sharp internal corners remain problematic because of Faraday cage shielding effects. A general rule of thumb: powder will typically penetrate to a depth equal to roughly twice the width of the opening.

Practical Solutions for the Shop Floor

Start with your grounding. Poor electrical grounding due to dirty hooks and racks is one of the most overlooked causes of Faraday cage issues. If you hear a snapping noise when spraying, that is a symptom of a bad grounding system.

Lower your voltage. Reducing gun voltage to 40–60 kV and maintaining a gun-to-part distance of 8–10 inches gives powder particles a better chance of slipping past the cage opening rather than being aggressively redirected to the edges. Lower micro-amp and kV settings help get around kV rejection, as does decreasing powder flow.

Change your spray technique. Coat those Faraday cage areas first, while the part is still fresh. Keep the gun moving, lower the power, and insert the gun into the recess with the least air pressure possible, then slowly pull it backward out of the cavity. Switch to a focused nozzle tip or a slotted tip to concentrate the spray. Blast powder into recesses and increase the powder flow rate.

Preheating the metal part to at least 90°F before spraying can also reduce the Faraday effect. When you heat the part first, the powder melts into the corners more effectively.

Formulation Approaches

Beyond application technique, formulation plays a critical role. The Faraday cage effect in polyester powder coated wheels is solvable through formulation: conductive agents, low-dielectric polyester, fine-particle design, and polar flow agents can deliver uniform thickness even on challenging 10-spoke wheels. Additives like Lubrizol Lanco Stat 308 are specifically designed to improve coverage in recessed areas by minimizing Faraday cage effects while also improving flow during application.

Tribo guns offer another alternative. By eliminating the electrostatic field through triboelectric charging rather than corona charging, they can optimize Faraday cage penetration. Corona rings and low-voltage pulse technology can also help optimize the electrostatic field. Some powder formulations are engineered specifically for improved Faraday cage penetration, enabling more uniform coating of substrates with recessed areas.

Why It Matters

The Faraday cage effect is not just a cosmetic nuisance—it has real consequences for corrosion resistance and product longevity. When recessed areas receive insufficient coating thickness, they become preferential sites for early coating failure. Filiform corrosion and edge corrosion are two failure modes particularly relevant to coated parts. Filiform corrosion propagates laterally beneath the coating, driven by moisture permeability and insufficient coverage. Edge corrosion is strongly influenced by geometry and coating thickness distribution—sharp edges and transitions typically receive lower coating build due to electrostatic application behavior.

In automotive applications, where wheels face chloride-rich de-icing salts, cyclic wet-dry conditions, and mechanical impacts, inadequate Faraday cage penetration can lead to premature corrosion and warranty claims. A leading automotive wheel manufacturer recently reported a 50% reduction in post-coating defects after adopting improved application techniques for aluminum metallic powders. Getting the Faraday cage effect under control is not just about aesthetics—it is about durability, customer satisfaction, and the bottom line.
