Powder Coating Orange Peel: Why It Happens and How to Fix It (For Real This Time)

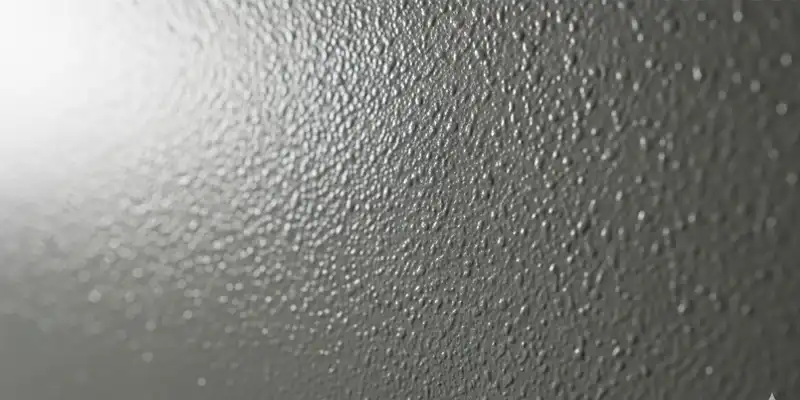

Let’s be honest – orange peel is one of those defects that can drive a powder coater absolutely crazy. You pull a rack out of the oven, the color is spot-on, no contamination in sight, but the surface looks like the skin of an orange. Wavy, slightly bumpy, nowhere near the smooth Class A finish your customer expects.

I’ve written a fair amount about powder coating basics before, so I’ll skip the 101 stuff here. What I want to dig into is the nitty-gritty of orange peel – specifically why it keeps showing up even when you’re “doing everything right,” and what actually moves the needle when you’re trying to eliminate it.

Just last month I had a call from a shop that coats aluminum automotive trim. They’d rejected two full batches because the surface looked textured instead of glossy. Their first move? Blame the powder. They switched suppliers and still saw the same issue. Turns out, the powder wasn’t the problem at all. This happens more often than you’d think, and it’s exactly why I wanted to write this post.

The Curing Oven Is Usually the Real Culprit

If there’s one thing I’ve learned from years of troubleshooting, it’s this: orange peel is rarely just a powder formulation problem. Most of the time, the root cause lives in your cure cycle – specifically, how fast the part heats up.

Powder particles need time to melt, flow together, and level out before the crosslinking reaction locks the film in place. When a part heats up too quickly, the surface of the coating can start to gel and cure while the underlying layer is still trying to flow. The result is that wavy texture we call orange peel. Think of it like melting chocolate chips in a pan – if you blast them with high heat, the outside scorches before the inside can smooth out.

Infrared-heavy ovens, especially older gas catalytic IR systems, are notorious for this. They can shoot the surface temperature up so aggressively that the flow window slams shut almost immediately. Even in convection ovens, putting cold, heavy-gauge parts straight into a 200°C zone can create a similar effect because the metal itself acts as a heat sink and the coating on the surface lags behind.

What I often tell shops is to look at their time-to-temperature. If the part surface hits 180°C in under 4 or 5 minutes, there’s a good chance you’re not giving the film enough time to level. Sometimes simply reducing the temperature in the first zone or slowing down the line speed works wonders. I’ve seen cases where a 5-minute line speed adjustment turned a rejected orange peel finish into a perfectly smooth one, with zero change to the powder.

Film Thickness Matters More Than You’d Guess

Another thing that gets overlooked is film build. It’s tempting to spray as thin as possible to save on powder, but orange peel has a strong relationship with dry film thickness (DFT). When you’re under the powder’s recommended thickness range – say, spraying a polyester powder at 40 microns that really needs 60 to 80 – there simply isn’t enough material to fill in the microscopic valleys and level out. The texture of the substrate telegraphs through, and the flow can’t compensate.

I once visited a shop that was consistently getting orange peel on flat panels, but only on the edges. They were measuring DFT in the center of the part and assuming they were within spec. The issue? Electrostatic wrap was pulling powder to the face, but edges were barely getting 30 microns. The fix was as simple as adjusting gun positioning and bumping up the overall film build.

That said, too thick isn’t a free pass either. Excessive film can cause its own set of flow problems, like sagging or pops, but when it comes to orange peel, being slightly on the upper end of the recommended range usually helps the coating level out beautifully.

Particle Size and the “Flow Control” Illusion

Here’s where I see a lot of confusion. Yes, the powder’s particle size distribution plays a role. If a powder has a high percentage of coarse particles (say, a lot of material above 80 or 90 microns), those big chunks take longer to melt, and the film can end up with a slightly granular texture. But here’s the thing – reputable powder manufacturers control this pretty tightly. Unless you’re using an ultra-low-cost powder or a specialty texture finish, particle size alone is unlikely to be the source of a sudden orange peel problem.

What’s more likely is that the flow control additives in the powder aren’t working as they should, and that’s often because of contamination or storage issues. I’ve seen shops store powder in unheated sheds where moisture gradually degrades the reactivity and flow characteristics. Then they wonder why the same powder that ran perfectly in the summer suddenly gives orange peel in the winter. Keep your powder dry and within the storage temperature range the manufacturer recommends. It’s boring advice, but it fixes a surprising number of problems.

And one more thing about flow – not all “flow modifiers” are created equal. Some polyester powders rely heavily on benzoin or other degassing agents to get a smooth surface, but if the base resin has a naturally high melt viscosity, no amount of additive will make it level like a low-viscosity system. This is something your powder supplier can help you understand, but it’s worth knowing that you can’t always additive your way out of a formulation limitation.

The Substrate Surface You Can’t Ignore

This one doesn’t get talked about enough. If you’re coating over a rough, heavily profiled substrate – like sandblasted steel with a deep anchor pattern – some degree of orange peel may be inevitable no matter how well the powder flows. The liquid-like film can only level so much over those peaks and valleys. In those cases, you either need to adjust the customer’s expectations, specify a thicker film, or consider a primer-surfacer layer that gets sanded smooth before the topcoat.

I recall a project where a manufacturer was powder coating cast aluminum parts that had a naturally porous surface. They kept chasing orange peel, but the real fix was a pre-heat step that helped outgas the substrate and allowed the powder to flow into the pores more evenly. Sometimes the problem isn’t the coating at all – it’s what’s underneath.

Putting It All Together – A Quick Self-Check

When I get those “help, my finish looks like a golf ball” emails, here’s the mental checklist I run through. It might help you too:

1. Pull your oven temperature profile data. What’s the actual rate of rise on the part? If it spikes above 30°C per minute in the first few minutes, try backing it down.

2. Measure DFT in multiple spots – edges, recesses, flat faces. If it’s below the powder’s recommended minimum, increase it.

3. Make sure your powder isn’t old, moisture-damaged, or contaminated with a different chemistry.

4. Check the substrate surface profile. If it’s rough, either adjust the customer spec or increase film thickness.

5. Talk to your powder supplier. Show them your cure curve and film thickness data. A good supplier will help you dial it in.

Most of the time, one of these reveals the true culprit. I’ve rarely had to go deeper than this unless the powder chemistry itself was inappropriate for the application.

Wrapping Up (Without a Magic Wand)

There’s no single magic trick that eliminates orange peel forever. But once you stop chasing the powder and start looking at what the oven and the gun settings are actually doing to the film, you’re already 90% of the way there. The shops that consistently produce smooth, high-gloss finishes are the ones that profile their ovens religiously, check DFT like it’s second nature, and don’t ignore the basics of powder handling.

Got a head-scratcher orange peel situation in your shop? Drop a comment or reach out – I geek out over this stuff and I’m always happy to trade notes. Happy coating!
